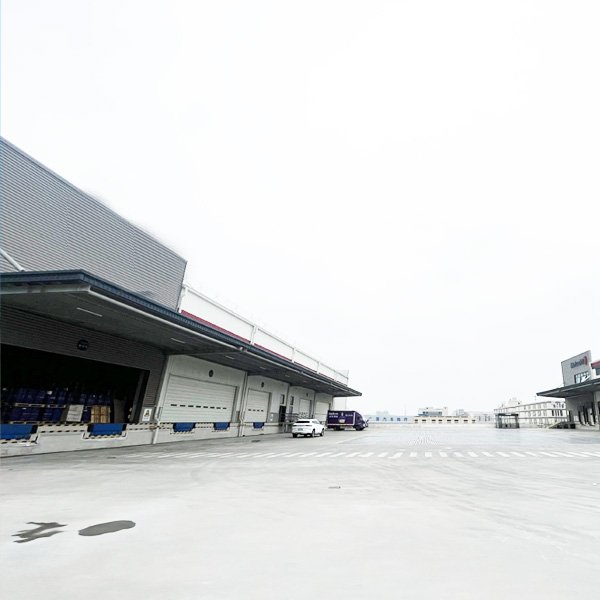

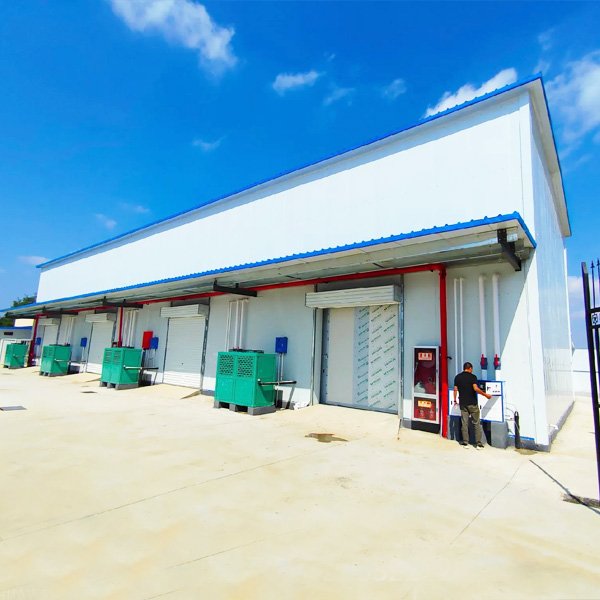

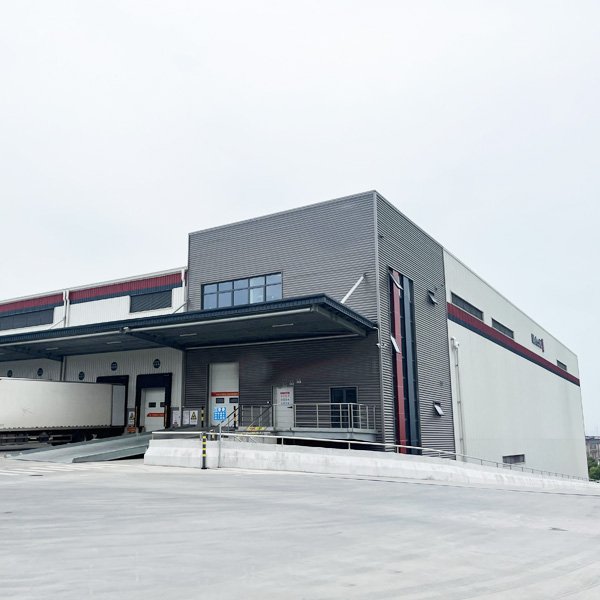

Steel Structure Cold Storage Building Product Introduction
1. Product Overview
A steel structure cold storage building is a specialized prefabricated facility designed for temperature-controlled storage of perishable goods such as food, pharmaceuticals, agricultural products, and seafood. Combining a high-strength steel frame with advanced insulation and refrigeration systems, it ensures precise temperature control, energy efficiency, and long-term durability.
This solution is widely used in logistics centers, food processing plants, and cold chain distribution systems, providing reliable storage under refrigerated or frozen conditions.
2. Structural System
Main Steel Structure
- Columns & Beams: Welded or hot-rolled H-section steel
- Material Grade: Q235B / Q355B (or ASTM equivalent)
- Surface Treatment: Hot-dip galvanizing (recommended for anti-corrosion in low-temperature and humid environments)
Secondary Structure
- C/Z purlins for roof and wall support
- Bracing systems to enhance structural stability
- Reinforced framing for refrigeration equipment installation
3. Insulation & Building Envelope System

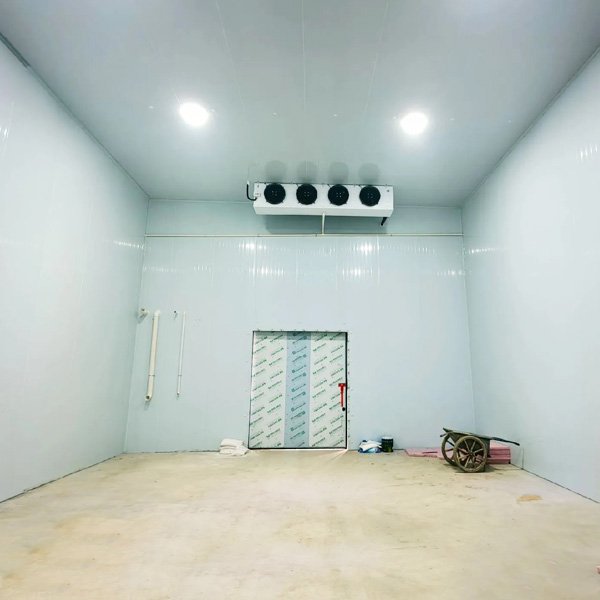

Cold Storage Panels
- High-performance insulated sandwich panels (PU/PIR recommended)
- Panel thickness: 50mm – 200mm depending on temperature requirements
- Excellent thermal insulation and airtightness
Roof System
- Insulated roofing panels with vapor barrier
- Anti-condensation design
- Waterproof and drainage system integrated
Floor System
- Reinforced concrete floor with insulation layers
- Vapor barrier and moisture-proof treatment
- Optional underfloor heating system (to prevent frost heave)

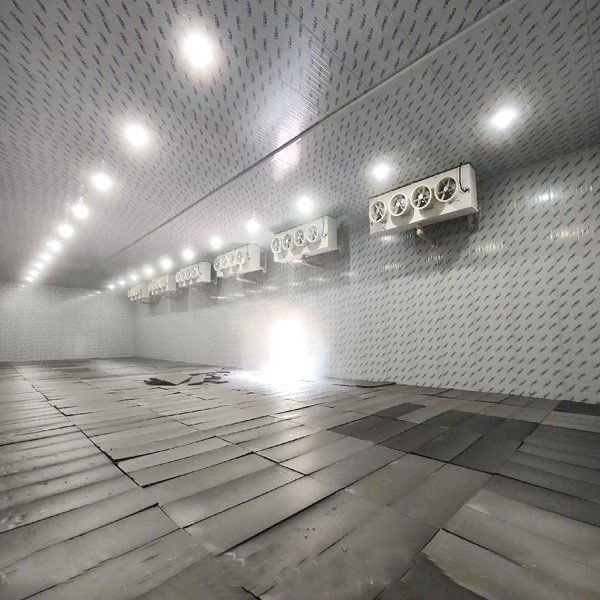

4. Refrigeration System
The cold storage building is equipped with advanced refrigeration systems to maintain stable internal temperatures:
- Cooling Units: Air-cooled or water-cooled condensing units
- Evaporators: Ceiling-mounted or wall-mounted units
- Temperature Range:
- Chilled storage: 0°C to 10°C
- Frozen storage: -18°C to -25°C
- Deep freezing: up to -40°C (customizable)
- Control System: Intelligent temperature monitoring and automation system

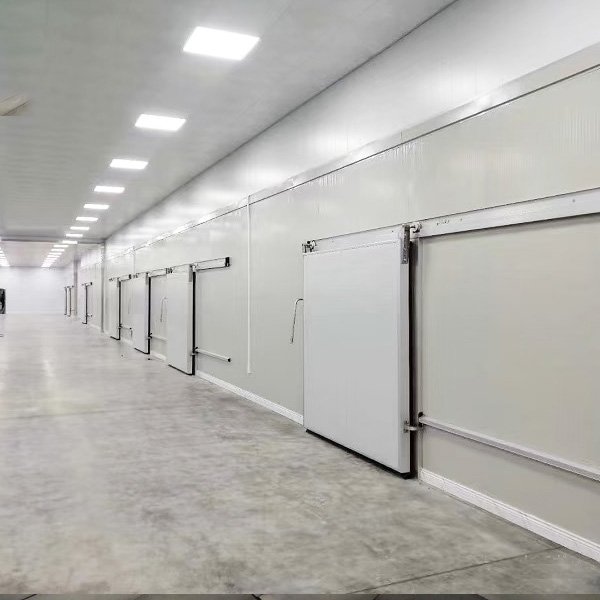

5. Doors & Sealing System
- Sliding cold room doors or hinged insulated doors
- High airtight sealing to minimize energy loss
- Optional rapid roll-up doors for logistics efficiency
- Air curtains (optional) to reduce temperature exchange
6. Functional Systems
Ventilation & Air Circulation
- Uniform airflow distribution for consistent temperature
- Humidity control system
Lighting System
- Low-temperature resistant LED lighting
- Energy-efficient and long lifespan
Monitoring & Control
- Digital control panel for temperature and humidity
- Remote monitoring system (optional)
- Alarm system for temperature deviation
7. Design Features
- Modular and scalable design for future expansion
- High airtightness and thermal efficiency
- Customized based on storage capacity and temperature requirements
- Designed according to local climate and operational needs
8. Manufacturing Process
- Steel fabrication and welding
- Surface treatment (galvanizing/painting)
- Insulation panel production
- Equipment integration
- Quality inspection and packaging
All components are prefabricated to ensure precision and fast installation.
9. Installation
- Bolt-connected steel structure for quick assembly
- Panel installation with airtight joint systems
- Professional refrigeration system installation
- Installation guidance or full turnkey service available
10. Advantages
- Excellent Thermal Insulation & Energy Efficiency
- Precise Temperature Control
- Fast Construction & Reduced Project Timeline
- Durable and Corrosion-Resistant Structure
- Flexible Design for Different Storage Needs
- Low Operating and Maintenance Cost
11. Application Areas
- Food cold storage (meat, seafood, fruits, vegetables)
- Pharmaceutical storage
- Cold chain logistics centers
- Supermarket distribution warehouses
- Agricultural product preservation
12. Technical Parameters (Typical)
- Temperature Range: 0°C to -40°C (customizable)
- Panel Thickness: 50mm – 200mm
- Span: 10m – 40m
- Height: 4m – 12m
- Storage Capacity: Customizable based on project
13. Packaging & Delivery
- Steel components securely bundled
- Insulated panels carefully packed
- Refrigeration equipment protected during transport
- Container shipping (20GP / 40HQ / reefer if required)
- Complete documentation provided
14. After-Sales Service
- Installation drawings and technical support
- Remote monitoring guidance
- On-site engineer service (optional)
- Long-term maintenance and spare parts supply
