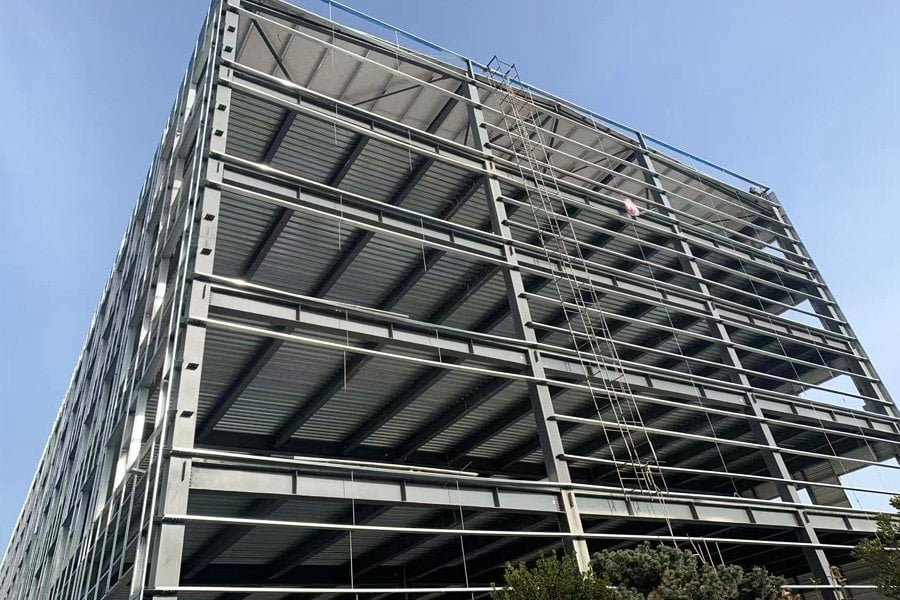

Five-Story Steel Structure Workshop Building – Shandong Project
1. Project Overview
This project is a five-story steel structure workshop building located in Shandong, designed for industrial production and multi-level operations. The building combines high structural strength, efficient space utilization, and modern insulation systems, making it suitable for manufacturing, processing, and light industrial applications.
2. Project Specifications
- Location: Shandong
- Building Type: Multi-story steel structure workshop
- Length: 118 meters
- Width: 18 meters
- Height: 23.5 meters
- Floors: 5 stories
- Total Steel Consumption: 790 tons
3. Structural System
Main Structure
- Steel columns and beams made of high-strength H-section steel
- Multi-story frame structure designed for vertical load distribution
- Optimized structural layout ensuring stability and safety
Floor System
- Composite floor system (steel decking + reinforced concrete)
- High load-bearing capacity suitable for industrial equipment and operations
Stability System
- Bracing systems integrated to enhance resistance against wind and seismic loads
- Designed in compliance with local building standards
4. Building Envelope System
Wall System
- 0.6mm horizontally mounted color steel panels
- 75mm insulation layer for thermal efficiency
- Good performance in heat insulation and weather resistance
Roof System
- 0.6mm Color steel sheet
5. Design Features
- Multi-story design maximizing land use efficiency
- Suitable for production lines, storage, and office integration
- Flexible internal layout for different industrial functions
- Modern industrial appearance
6. Construction Advantages
- Prefabricated steel components for high precision
- Fast installation compared to traditional concrete buildings
- Reduced construction time and labor cost
- Environmentally friendly construction process
7. Application
- Manufacturing workshops
- Processing plants
- Industrial production facilities
- Multi-level factory buildings
8. Project Highlights
- Large-scale five-story steel structure design
- High total steel usage ensuring structural strength and durability
- Integrated insulation system for energy efficiency
- Optimized for industrial productivity and long-term use
